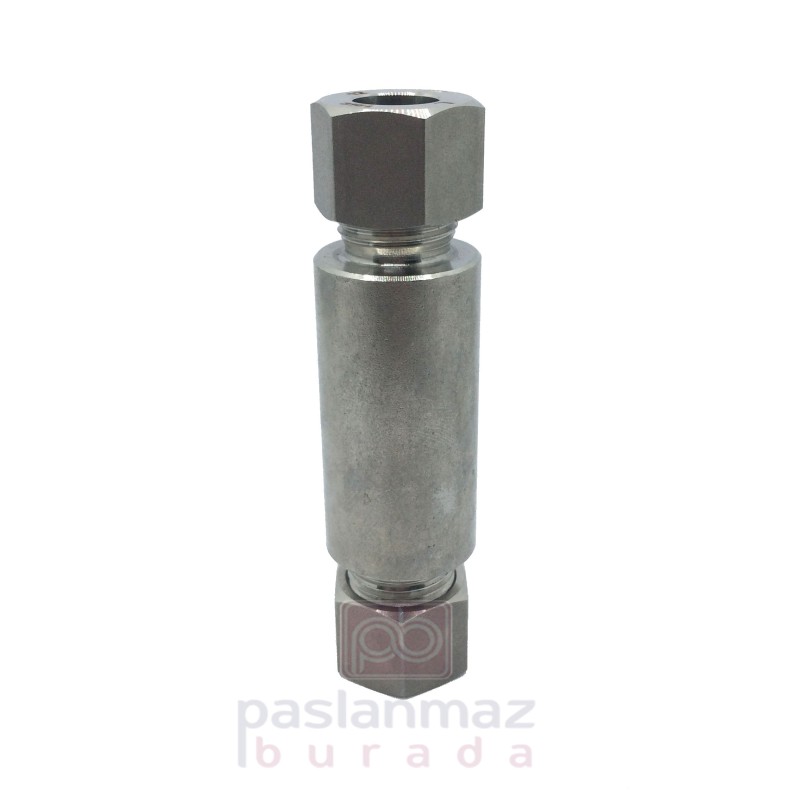

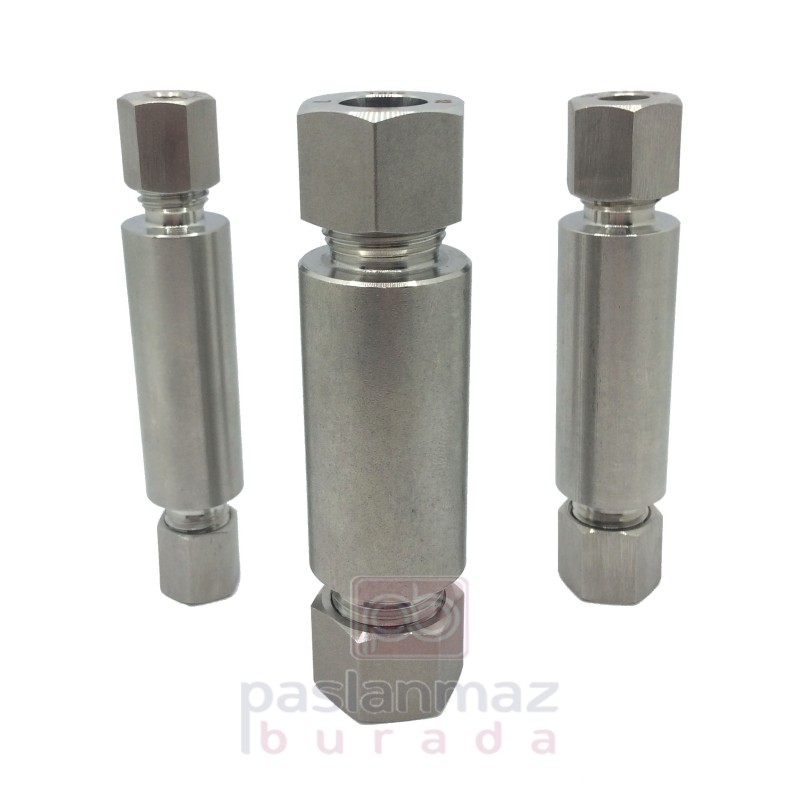

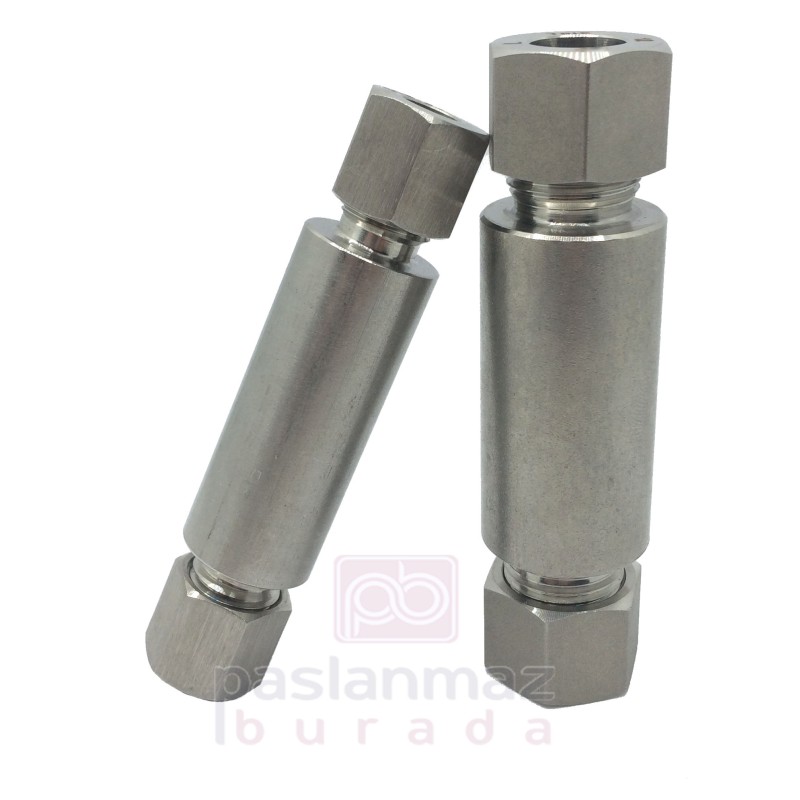

Paslanmaz Hidrolik Weld Bulkhead Connector

What is Stainless Hidrolik Weld Bulkhead Connector?

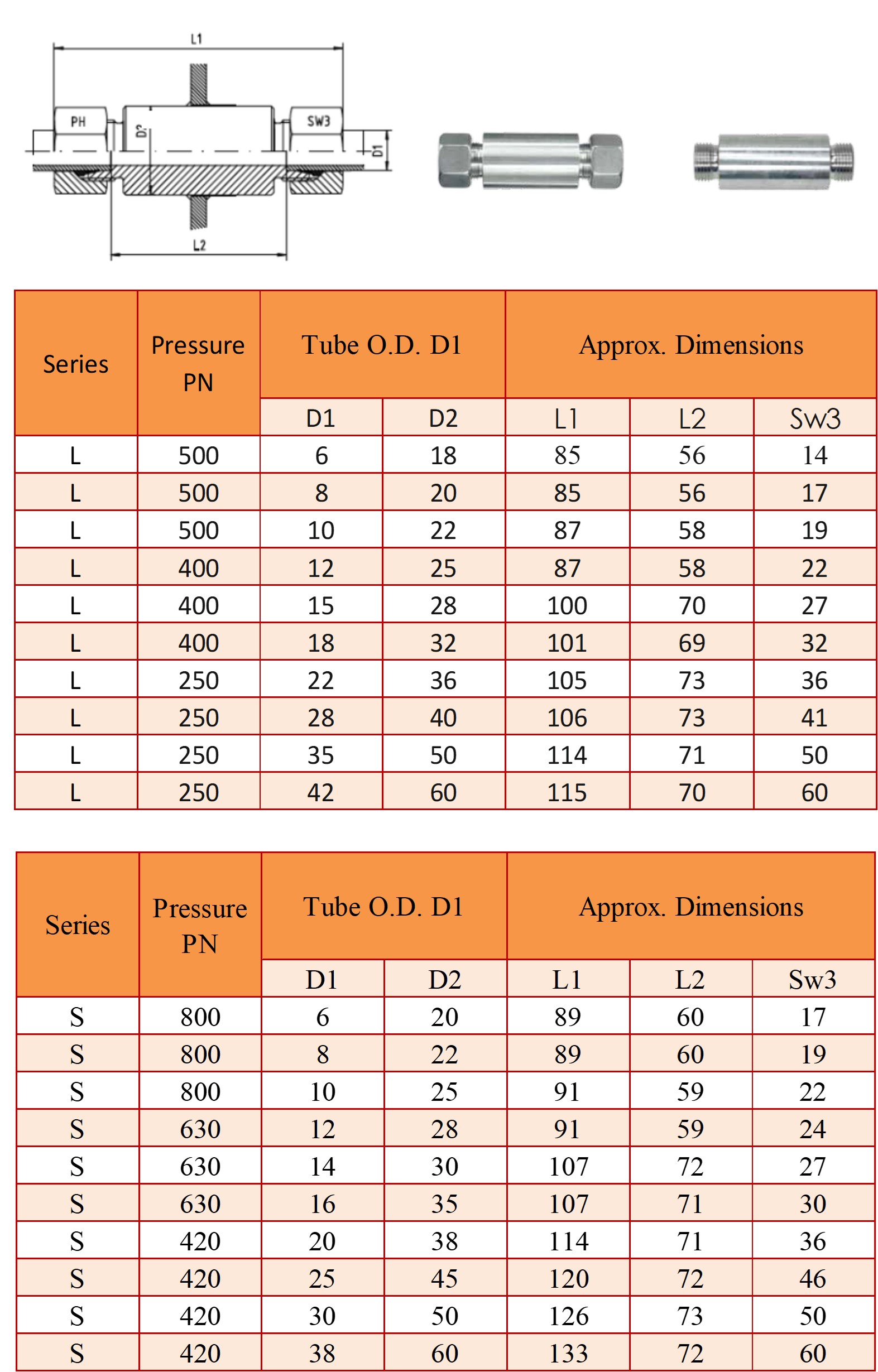

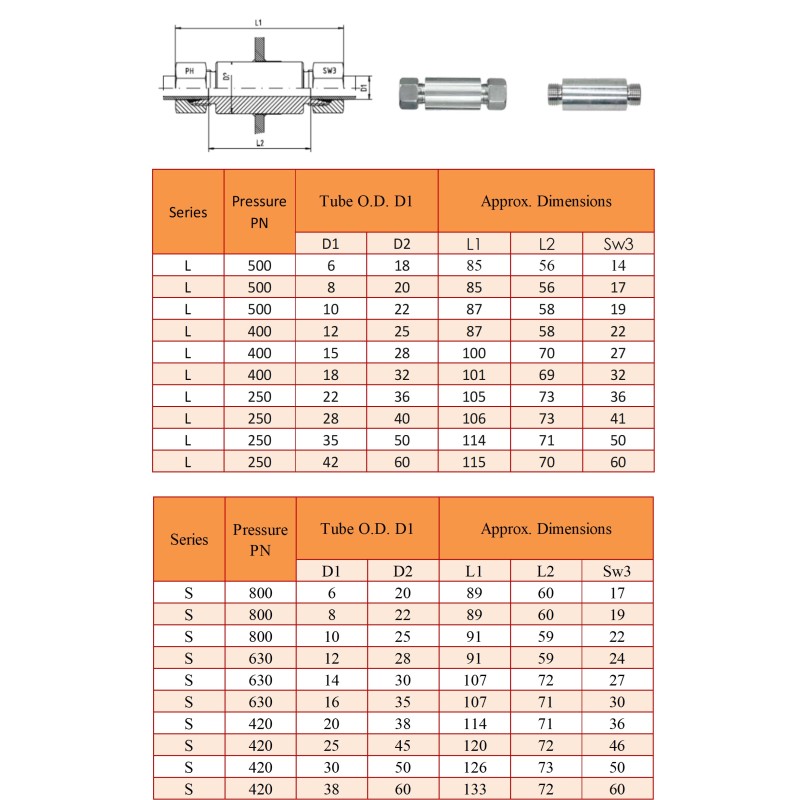

Weld Bulkhead Connector, It is divided into 2 as welded and threaded. Series types available is L and S also outer diameter 6 to 38.

Hidrolik Weld Bulkhead is used as a connector between liquids container (tank) and fittings system.

It actually allows the fluid to pass to the other side of the tank and the pipeline continues with tube fittings.

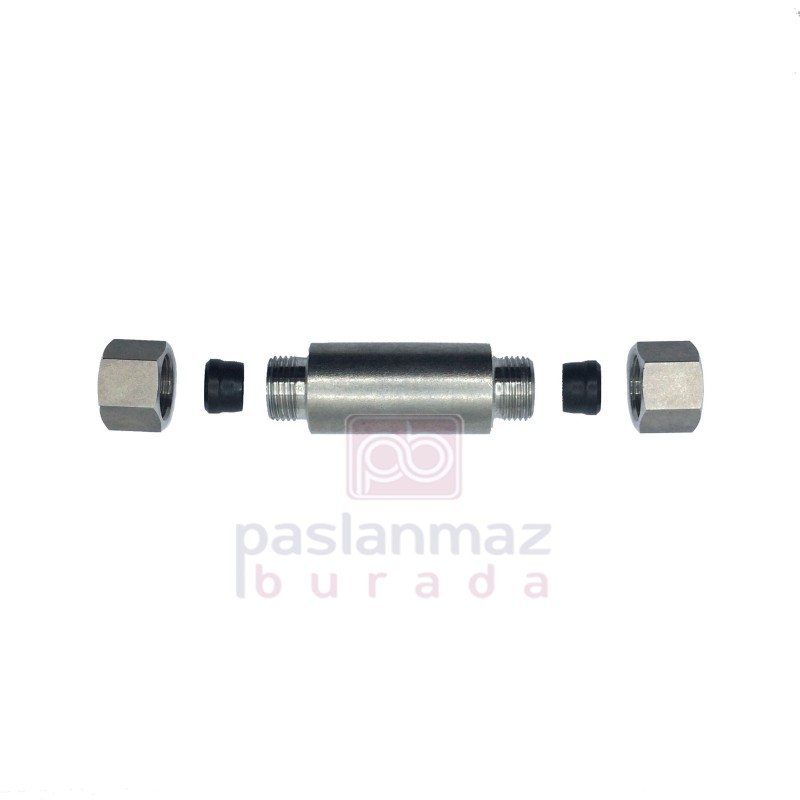

Weld Bulkhead Connector, It consists of 2 rings, 2 nuts, and 1 body. If the system is double ferrule, double ferrule tube fittings are used.

You can use our Live Support Module to reach more detailed information about Stainless Hydraulic Weld Bulkhead Connector Prices and Features, You can reach our Customer Representatives by Phone or Mail.

You can find more information by reviewing our social media accounts where we actively share and inform about our products. Twitter, Facebook, Instagram, Linkedin, and Youtube.

Tube fittings are high-pressure instrument products. nipple with a stainless ring; Stainless steel nipples are used in high-pressure industry, energy industry, defense industry, refinery, fire fighting, construction, chemical industry, petro-chemical industry, ship industry, food industry, frankly, in every field where pressure is present.

Material Quality Class: AISI 316ti or 316L.

Pipe Norm: ASTM A269 Stainless Seamless Pipe (4mm-42mm).

We also sell nipples in the form of body and nut excluding. The letters S and L in the product lines indicate the pressure levels.

S = Strength -> High Pressure

L = Low -> Low Pressure
